It stands on its own

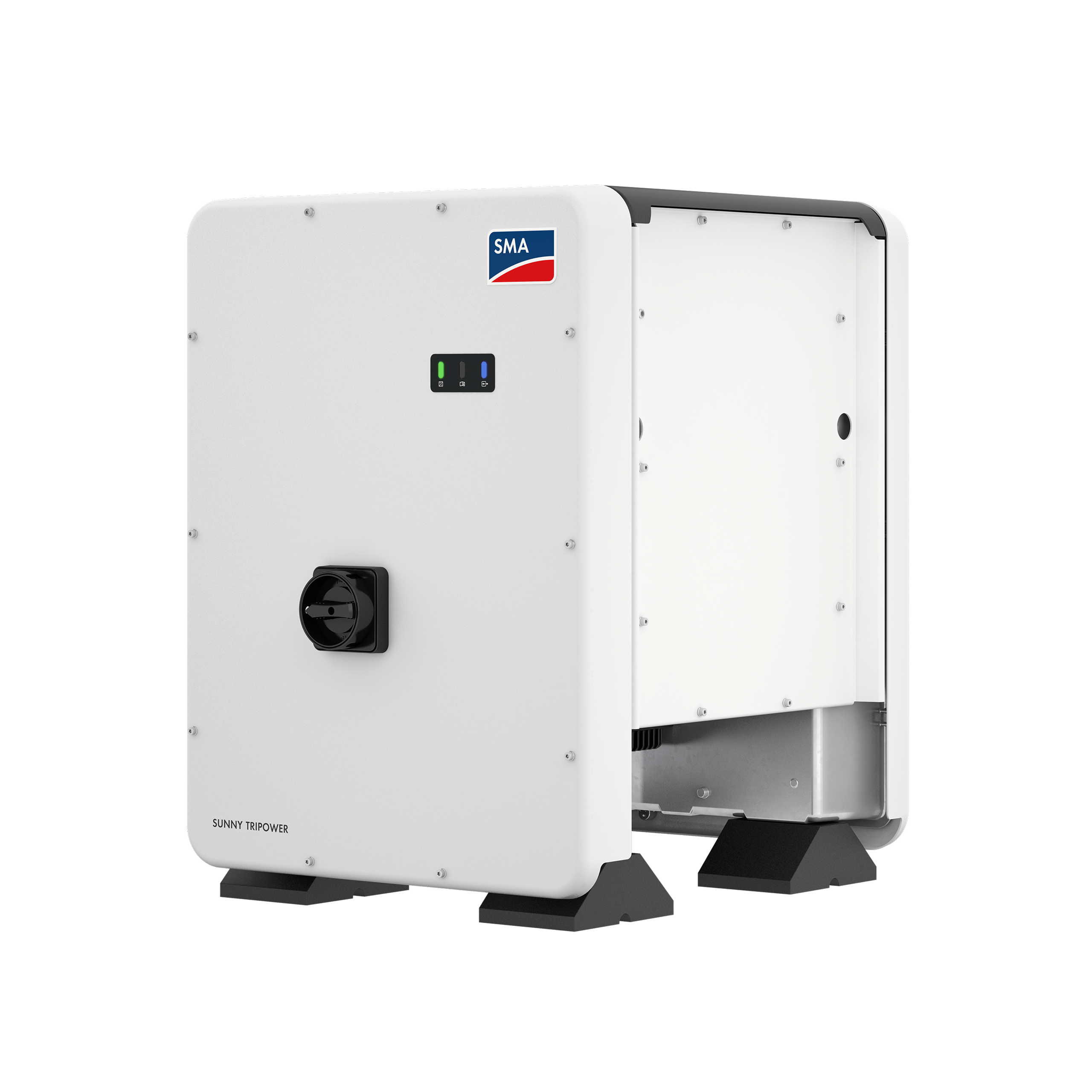

Sunny Tripower CORE1

Up to 60% faster installation of commercial PV systems

The Sunny Tripower CORE1 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces. The groundbreaking new design allows reductions in installation time of up to 60% and, at the same time, lowers the total cost of ownership (OPEX).

Whitepaper

Read our whitepaper

To the whitepaper

Settings for Australia

STP50-41 CORE1

Download
SMA Sunny Tripower CORE1
SMA Sunny Tripower CORE1
SMA Sunny Tripower CORE1

Top performance and maximum efficiency thanks to innovative design

Its unique, free-standing design allows the Sunny Tripower CORE1 to be installed 60% faster than other string inverters. The innovative, fully integrated design of the CORE1 ensures low BoS costs, simpler project processes and lower material expenses. It sets new standards for decentralized rooftop and ground-based PV systems and covered parking lots.

Proven in practice

The CORE1 has proven its value. Thanks to its versatility, it has become the first choice for commercial PV projects, enjoys great popularity and has unlimited delivery capacity.

Skalierbar für maximale Energieerträge

Scalability for maximum energy yields

  • With a capacity of 50 kW, it is scalable up to the megawatt range

  • Up to 150% overdimensioning of PV array

  • Six independent MPP trackers guarantee optimal energy production for every use, even in shade

 Konsequent integriertes Konzept

Consistently integrated concept

  • Low balance of system (BoS) costs, simple project processes and low material expenses

  • Twelve direct string inputs, DC disconnector and optional AC and DC surge protection

OptiCool™ Aktives Kühlsystem

OptiCool™ active cooling system

  • SMA’s intelligent OptiCool™ cooling system is reliable and ensures maximum energy production, even in challenging conditions

  • Has proved its worth in over 75 GW of installed power worldwide

  • Safe investment in solar

  • Lower service cost

Smart Inverter Screen provides fast commissioning and saves time and money

  • One-click commissioning: scan the QR code and access the Smart Inverter Screen via WLAN

  • No need to waste time entering login details

  • “Captive Portal” enables direct access to the home page of the Commissioning Wizard

Rundum sorglos mit SMA Smart Connected

Ease and comfort with SMA SMART CONNECTED

  • Free automatic inverter monitoring

  • Proactive communication in the event of malfunction

  • Simplified logistics thanks to automatic replacement service

  • Shorter and plannable servicing

The Future of Commercial PV Systems

From delivery and installation to operation, the Sunny Tripower CORE1 generates widespread savings in logistics, labor, materials and services. With integrated Wi-Fi access for fast commissioning, up-to-date plug-and-play communication and smart grid support functions, PV installations are quicker and easier to complete than ever before.

Sunny Tripower CORE1

Sunny Tripower CORE1 for distributors

Achieve Cost Savings..

  • Flexible use with just one product

  • Worldwide platform for universal use

  • Fewer components and BoS components

  • Extensive support and service

Sunny Tripower CORE1 for EPCs and Developers

Reduce Installation and Purchase Price...

  • Plug-and-play concept

  • Faster installation and lower labor costs

  • Reduced material costs

  • Free tool for system planning

Sunny Tripower CORE1 for energy providers

Ensure Top Performance...

  • The lowest LCOE

  • Optional 24/7 remote monitoring thanks to SMA’s number one rated service team, worldwide

  • An effective interface for customer monitoring

  • Intelligent grid management service

Sunny Tripower CORE1

Watch the installation video

Fast Installation and Grid Integration

Cutting-edge configuration and communication with the SMA online assistant and SMA Web browser access via WLAN with any mobile device. Two Ethernet ports with ModBus® TCP (including SunSpec) ensure smooth communication even in large-scale PV plants.

SMA Web-Assistant

"Sunny Tripower CORE1 is the first free-standing string inverter. Its unique design makes installation much faster and easier, without additional mounting racks."

Nick Morbach

EVP of Business Segment C&I

Performance in the Shade

Partial shade on a PV array is sometimes unavoidable. If not correctly managed, it can affect the performance of your entire system. But with the patented SMA ShadeFix function in your Sunny Tripower, the effect of partial shade is minimised allowing your PV system to operate as though there was no shade.

Sunny Design

With Sunny Design, you can plan your tailor-made PV system in just a few clicks.

Plan your system now
Whitepaper: SMA Sunny Tripower CORE1: Optimised for any business

Whitepaper

SMA Sunny Tripower CORE1:
Optimised for any business

To the whitepaper

Contact

We will be happy to advise you
on your PV projects.

Contact us

Sunny Tripower CORE1

Accessories

Modbus Protocol Interface

With the Modbus protocol interface, SMA makes flexible integration of inverters possible. Through the use of this well-known industry standard, you can integrate SMA inverters into your systems without having to follow the SMA-specific inverter protocol.

Modbus Protokoll-Schnittstelle

Wlan Antenna Extension

Ambient conditions are not always ideal for a WLAN connection between an inverter and a router. For example, drywall can impair wireless signals significantly, or the inverter might not send its signals correctly because of an installation location that cannot be changed. In this case, simply use the external WLAN antenna extension to increase range even in poor ambient conditions and to ensure a reliable connection with your router.

SMA Sensor Module for Monitoring the System

The sensor module allows you to record environmental data such as solar irradiation and cell temperature to analyze system performance. This means that any PV system malfunctions can be detected quickly and yield loss minimized. The SMA Sensor Module allows you to connect sensors that measure ambient temperature or wind speed and also provides a simple display for an S0 energy meter.

RS485 Interface

The ideal solution for the expansion of existing PV systems that already use RS485 communication. The RS485 interface can be retrofitted and guarantees the proven, cable-based SMA fieldbus communication via RS485 for simple connection to a data logger with a cable length of up to 1,200 meters.

I/O Module With Power Control Function

As a multifunction interface, the SMA I/O Module ensures the implementation of grid management services and therefore compliance with the Renewable Energy Sources Act (EEG) 2012.

Sunny Tripower CORE1

Downloads

Betriebsanleitung

Operating instructions

Now the user manual is also available as

eManual
