AS/NZS 4777.2:2020 Inverter Standard
The new AS/NZS 4777.2:2020 inverter standard has become mandatory as of 18/12/2021.
PLEASE NOTE: A firmware update is required for current model inverters to obtain the functionality required in the new inverter standard. Minimum firmware versions are listed along with the compliant inverter models below.
New inverters will be pre-loaded with firmware from the factory, but it may take some time for this stock to reach customers.
AS/NZS 4777.2:2020 Technical Information (SBx.x-1VL-40, SBx.x-1AV-41, STPxx.x-3AV-40, STP50-41)
AS/NZS 4777.2:2020 Technical Information (STP 110-60)
AS/NZS 4777.2:2020 Technical Information (STP12-50, STP15-50, STP20-50, STP25-50)
AS/NZS 4777.2:2020 Technical Information - Sunny Island (SI6.0H-13/SI8.0H-13)
AS/NZS 4777.2:2020 Technical Information (SBSE3.6-50 SBSE4.0-50 SBSE5.0-50 SBSE6.0-50 SBSE8.0-50 SBSE9.9-50)
AS/NZS 4777.2:2020 Technical Information (STP 125-70)
SMA Inverters AS/NZS 4777.2:2020 Compliance Status
For SMA Inverters that comply to AS/NZS 4777.2:2020 and listed on CEC, the listing date will be shown as DD/MM/YYYY.

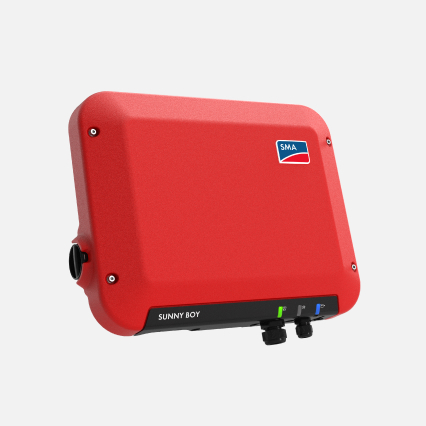

Sunny Boy 1.5 / 2.5
Model
SB1.5-1VL-40
SB2.5-1VL-40
Minimum Firmware
3.11.05.R

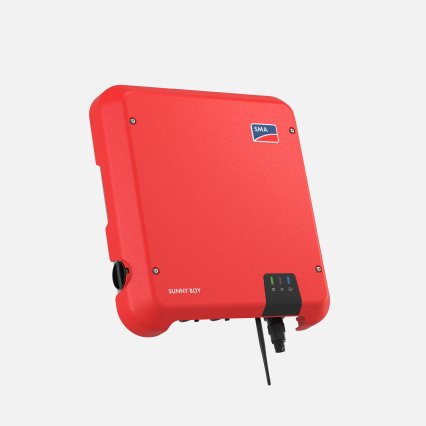

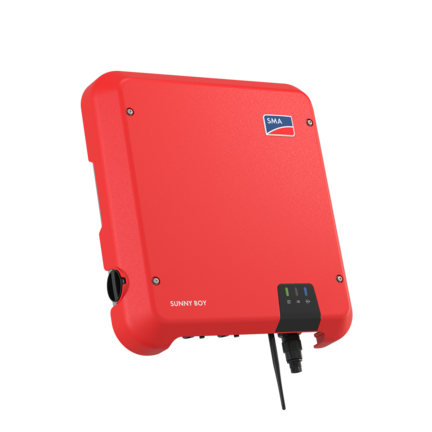

Sunny Boy 3.0 / 4.0 / 5.0 / 6.0
Model
SB3.0-1AV-41
SB4.0-1AV-41
SB5.0-1AV-41
SB6.0-1AV-41
Minimum Firmware
04.00.55.R

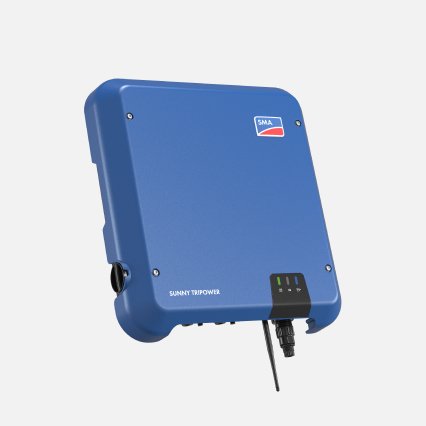

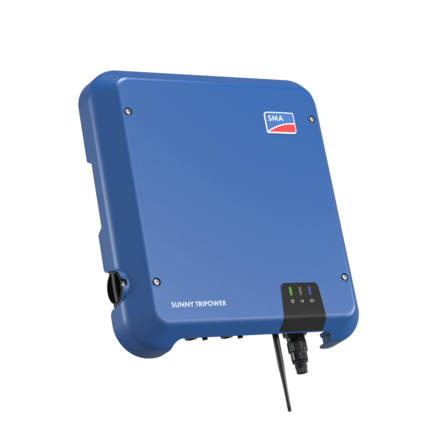

Sunny Tripower 3.0 / 4.0 / 5.0 / 6.0
Model
STP3.0-3AV-40
STP4.0-3AV-40
STP5.0-3AV-40
STP6.0-3AV-40
Minimum Firmware
3.11.11.R

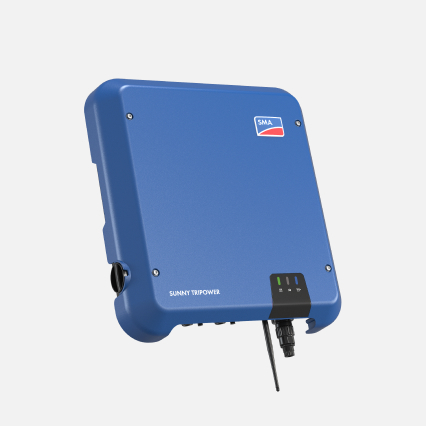

Sunny Tripower 8.0 / 10.0
Model
STP8.0-3AV-40
STP10.0-3AV-40
Minimum Firmware
3.11.11.R

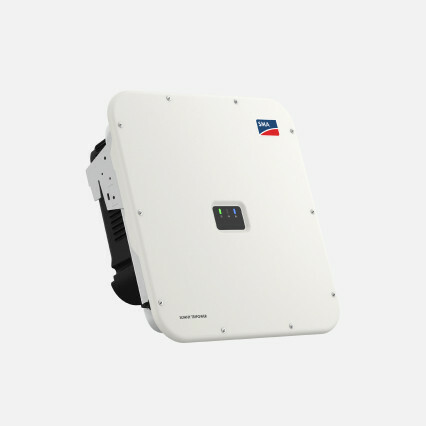

Sunny Tripower X 12 / 15 / 20 / 25
Model
STP12-50
STP15-50
STP20-50
STP25-50
Minimum Firmware
2.06.04.R

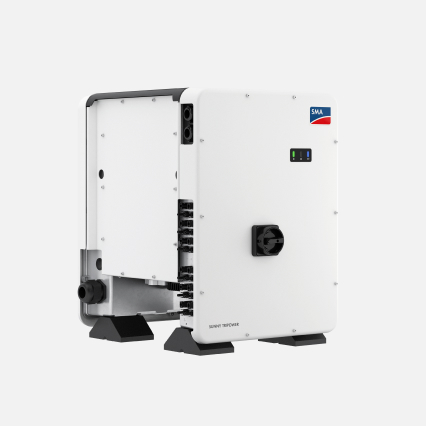

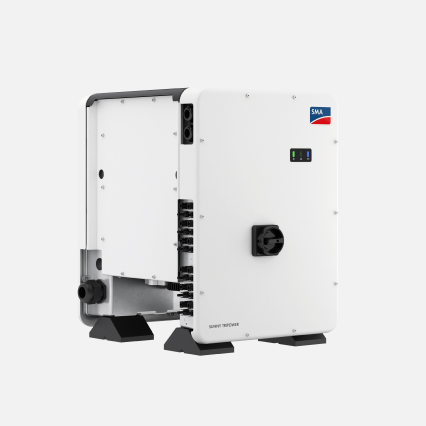

Sunny Tripower CORE1
Model
STP50-41
Minimum Firmware
3.14.05.R

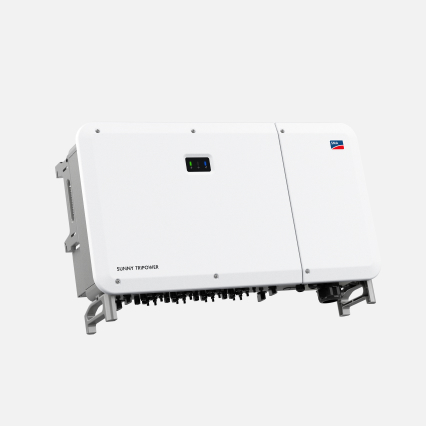

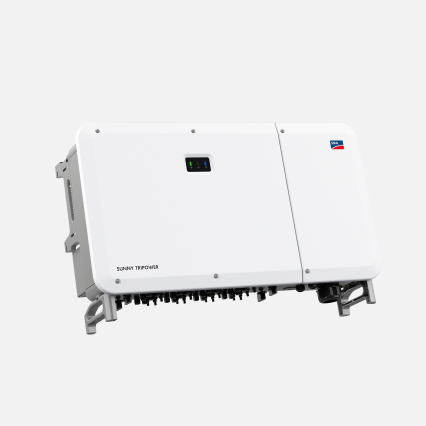

Sunny Tripower CORE2
Model
STP110-60
Minimum Firmware
1.00.12.R

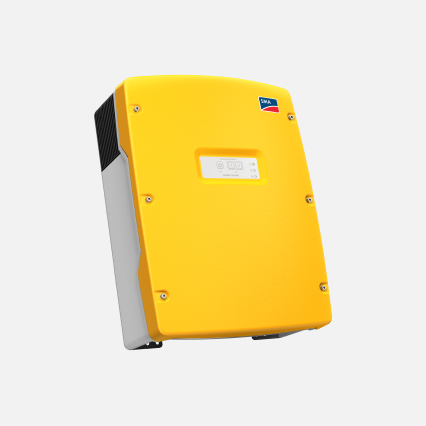

Sunny Island 6.0H / 8.0H
Model
SI6.0H-13
SI8.0H-13
Minimum Firmware
3.30.12.R
Export Limiting Combination
DISCLAIMER: The following combination has been tested under AS4777.2020 Appendix L. For any combination not listed here, contact Solar Academy.
| Controller | Compatible Inverters | Energy Meters | Export Limiting Document | Supporting Document |
|---|---|---|---|---|
| Data Manager | STP3.0-10.0 | SMA Energy Meter | Export Limiting AS4777.2020 - Data Manager M with SMA Energy Meter.pdf | Commissioning and Firmware Update - Data Manager M.pdf |
| STP X STP CORE1 | Siemens PAC2200 | Export Limiting AS4777.2020 - Data Manager M with Modbus Meter.pdf | ||
| STP X STP CORE1 | Janitza UMG604 | Export Limiting AS4777.2020 - Data Manager M with Modbus Meter.pdf | ||
| SMA Sunny Home Manager 2.0 | SB3.0-6.0 STP3.0-10.0 STP X STP CORE1 SBSE3.6-9.9 | Inbuilt | Export Limiting AS4777.2020 - Home Manager 2.0.pdf | |
| Inverter as Controller | SB3.0-6.0 STP3.0-10.0 | SMA Energy Meter | Export Limiting AS4777.2020 - Inverter as Controller.pdf |
| Compatible Inverters | Inverter Series | |
|---|---|---|
| SB3.0-6.0 | SB3.0-6.0-1AV-41 Series | SB3.0-1AV-41 / SB3.6-1AV-41 / SB4.0-1AV-41 / SB5.0-1AV-41 / SB6.0-1AV-41 |
| STP3.0-10.0 | STP3.0-10.0-3AV-40 Series | STP3.0-3AV-40 / STP4.0-3AV-40 / STP5.0-3AV-40 / STP6.0-3AV-40 / STP8.0-3AV-40 / STP10.0-3AV-40 |
| STP X | STP12-50 - STP25-50 Series | STP12-50 / STP15-50 / STP20-50 / STP25-50 |
| SBSE3.6-9.9 | SBSE3.6-50 - SBSE9.9-50 Series | SBSE3.6-50 / SBSE4.0-50 / SBSE5.0-50 / SBSE6.0-50 / SBSE8.0-50 / SBSE9.9-5-0 |
| STP CORE1 | STP50-41 | |
