Battery inverters for large scale storage systems

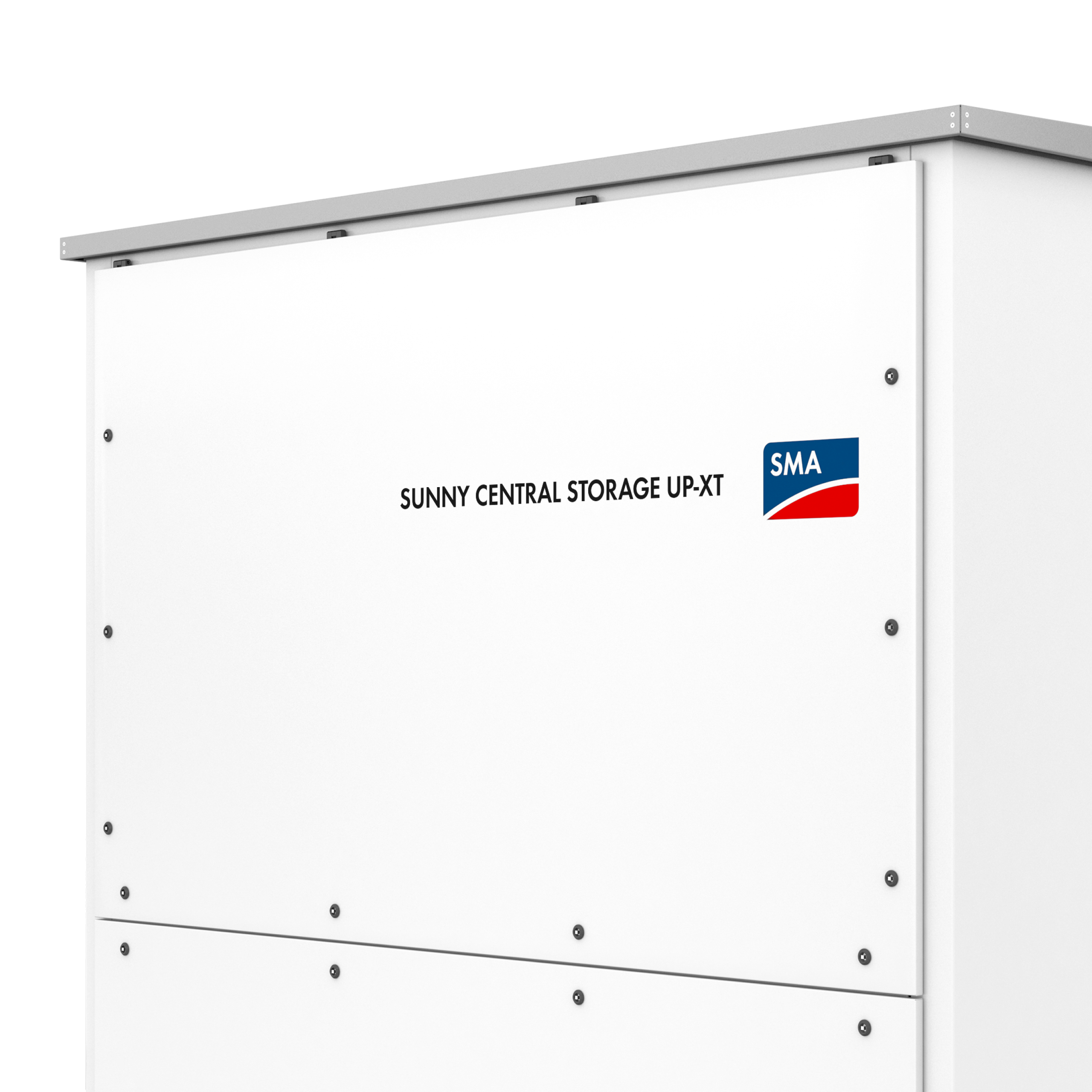

Sunny Central Storage 3450 UP-XT / 3600 UP-XT / 3800 UP-XT

Battery inverters for large scale storage systems

With a max. output of up to 4600 kVA and system voltages up to 1500 V DC, the SMA Sunny Central Storage allows for more efficient and flexible system design for battery power plants. The SCS UP-XT versions allow a system design with higher output power and higher short-circuit current contribution. The intelligent cooling system OptiCool ensure smooth operation even in extreme ambient temperature.



  • Up to 4 inverters can be transported in one standard shipping container

  • Higher power density

  • Higher power in grid feed direction

  • Higher short circuit contribution


  • Intelligent air cooling system OptiCool for efficient cooling

  • Suitable for outdoor use in all climatic ambient conditions worldwide


  • One device for all applications

  • Stand-alone device or turnkey solution with SMA medium-voltage system


  • Integrated battery communication

  • Customized monitoring and control of inverters

  • Grid management functions for dynamic grid support

  • Integrated voltage supply for internal consumption and external loads

Sunny Central Storage UP-XT 3450 / 3600 / 3800
