The best standard for small PV systems

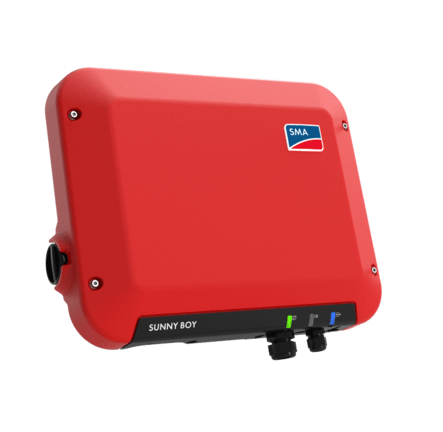

The Sunny Boy 1.5 / 2.0 / 2.5 is the perfect inverter for customers with small PV systems. Thanks to its broad input voltage range of 80 V to 600 V, its versatility, flexibility in module compatibility and low weight for easy installation are impressive. After smooth commissioning via the integrated web interface, the Sunny Boy 1.5 / 2.0 / 2.5 is ideal for local monitoring via the device’s own wireless home network or for online monitoring via the SMA Energy app. Thanks to its integrated SMA Smart Connected service, this inverter offers ease and comfort for PV system operators and installers. The automatic inverter monitoring by SMA analyzes operation, reports irregularities and thus minimizes downtime.
Easy to use with a new installation concept
The innovative design of the Sunny Boy 1.5/2.0/2.5 is not only easy to install, but also allows for quick DC and AC connections. For example, because it weighs just 9 kg, it can be suspended from just two screws, with no additional wall mounting bracket. Commissioning is equally easy, because the integrated user interface (Web UI) makes it possible to choose the necessary settings in next to no time – without opening the cover.
Rapid commissioning with the intuitive Web UI
Easy installation thanks to a low weight of just 9 kg and an intelligent connection concept
Broad input voltage range of 80 to 600 V
Flexibility in choice of module
Informative with an innovative communication concept
With its focus on what really matters, the Sunny Boy 1.5/2.0/2.5 also offers impressive communication features. The intuitive user interface (Web UI) makes it possible to monitor system data on any smartphone, tablet, laptop or traditional PC.
New communication concept thanks to Web UI
System data monitoring possible on all smartphones and tablets
Choose between local and online monitoring via Sunny Portal
Factory-integrated Ethernet and WLAN interface
Professional Monitoring via Webconnect with the Sunny Portal Professional Package
Sample calculation with Sunny Desgin
Whether it’s a small PV system with 1 to 2 kW output or a system with 6 kW—the new Sunny Boy is the ideal solution. Sunny Design enables users to calculate their desired system size using individual data.Download sample calculation
Performance in the Shade
Partial shade on a PV array is sometimes unavoidable. If not correctly managed, it can affect the performance of your entire system. But with the patented SMA ShadeFix function in your Sunny Boy, the effect of partial shade is minimised allowing your PV system to operate as though there was no shade.
SMA Smart Connected
Investment Security Included
With SMA Smart Connected, SMA is the first manufacturer to offer free and automatic inverter monitoring that helps installers provide customers with a quick, targeted service. If an inverter fails, SMA proactively informs the PV system owner and the installer. In this way, PV system owners and installers benefit from minimized diagnosis and downtime. If it is necessary to replace the inverter, SMA sends a replacement device fast and free of charge.
Activation of SMA Smart Connected
During registration of the system in Sunny Portal, you, as the installer, activate SMA Smart Connected and thus start automatic inverter monitoring by SMA.
Automatic inverter monitoring
SMA automatically checks the inverter for anomalies around-the-clock during operation. You and your customers benefit from SMA's many years of experience.
After a fault has been diagnosed and analyzed, SMA informs the installer and PV system operator immediately by email. Everyone is thus optimally prepared for the troubleshooting process ensuring minimum downtimes and reducing outlay and costs. The regular power reports also provide the installer with valuable information about the overall system.
If a replacement device is necessary, SMA automatically supplies a new inverter within one to three days of the fault diagnosis. As the installer, you can contact the PV system operator of your own accord and replace the inverter immediately.
SMA compensates PV system owners if the replacement inverter cannot be delivered within three days.
SMA Smart Connected is available in AU, AT, BE, CH, DE, ES, FR, IT, LU, NL, UK

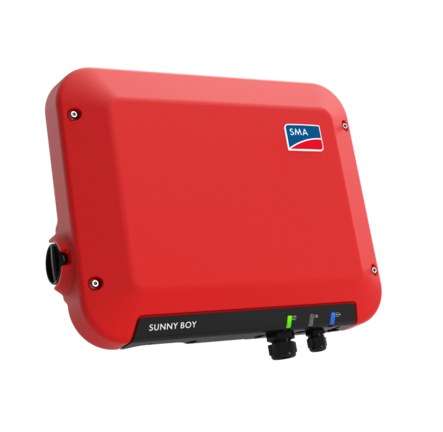

Sunny Boy 1.5 / 2.0 / 2.5
