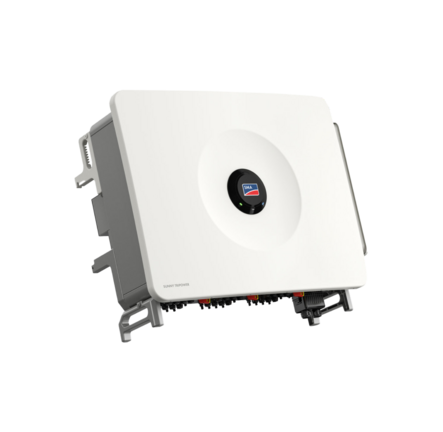

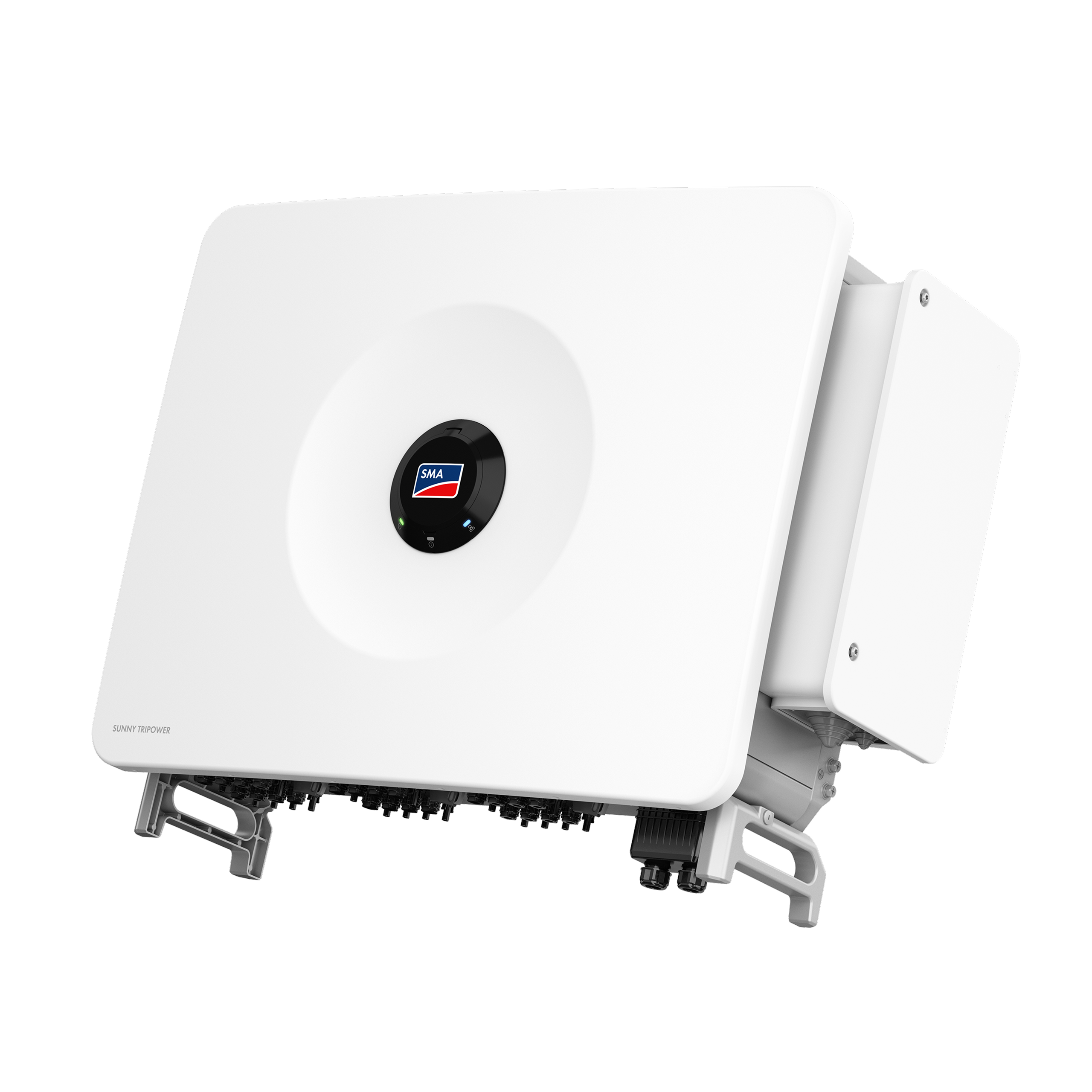

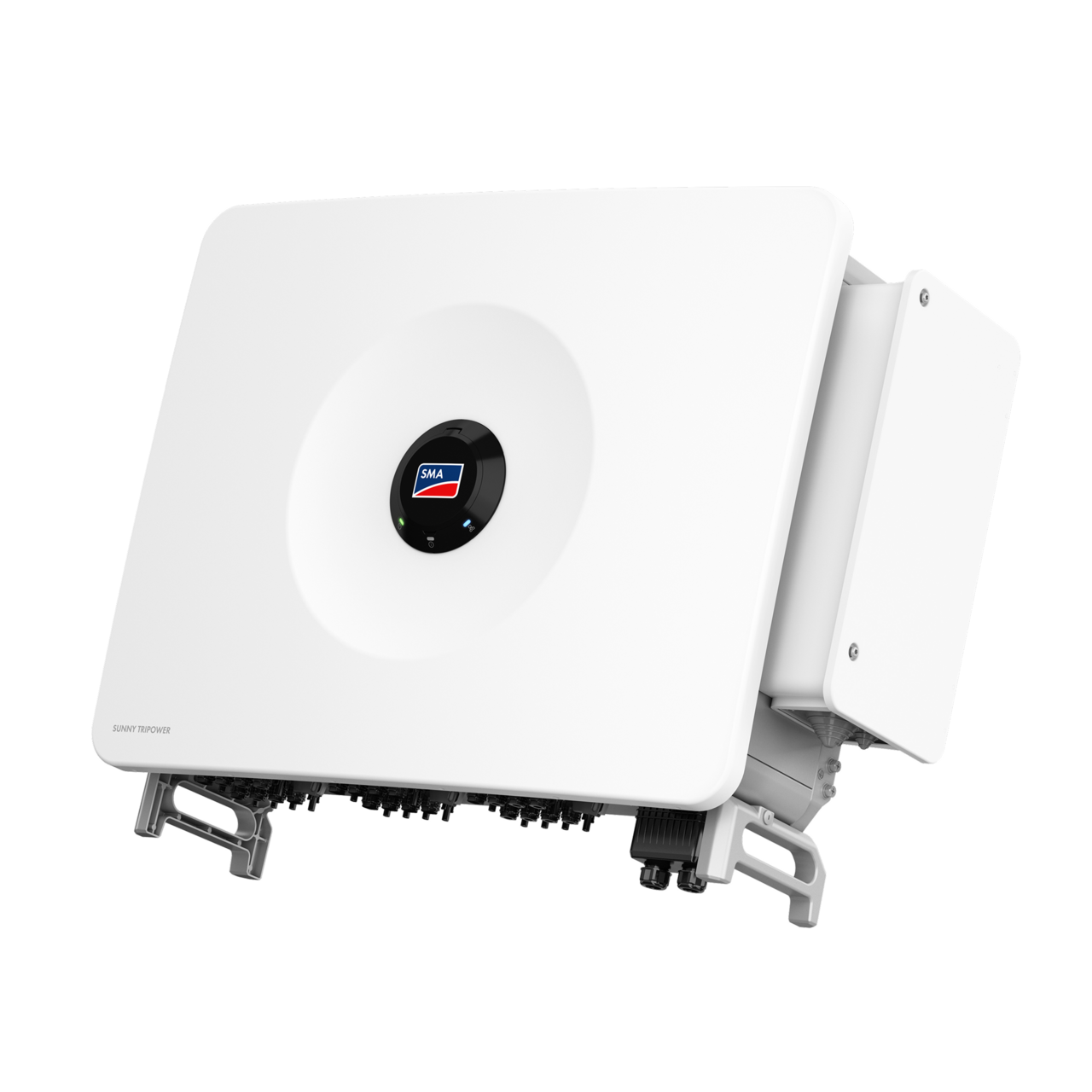

Sunny Tripower 125 STP125-70

Yes, the Sunny Tripower 125 is equipped with Type 1+2 surge arresters on the DC side and with Type 2 surge arresters on the AC side.

The maximum noise emission (level) is less than 71 dB(A) at a distance of 1 meter. The average noise level measured at a distance of 1 meter was 64 dB(A). When comparing with other products, please note which of the two values was referred to.

The standard warranty for the Sunny Tripower 125 is 5 years.

Yes, you can extend the warranty to 10, 15 and 20 years, and it can be purchased from SMA via the Online Service Center (https://my.sma-service.com/s/osc-30-warranty-extension).

No, because the Sunny Tripower 125 is intended for commercial use, it is currently only fully compatible with the SMA Data Manager M or products that have an integrated System Manager.

No, the Sunny Tripower 125 requires a superordinate communication device, such as the SMA Data Manager M, particularly to comply with the regulatory requirements.

Yes, for the simple systems without regulatory requirements, the inverter can be displayed directly in the Sunny Portal powered by ennexOS without the need for additional communication products.

Yes, the inverter has 4 digital inputs available for this purpose.

Yes, a fast stop input is used for this purpose. It can be connected to the trigger contact of an external grid monitoring device, which will lead to disconnection of the inverter from the utility grid within less than 100 ms in the event of a grid fault. These features can be used, for example, to implement the simplified grid and PV system protection required in Germany as part of VDE AR-N 4105. An additional interface switch can therefore be omitted.

No, an energy meter can only be used if there is a superordinate communication device, such as the SMA Data Manager M, in the system.

An SMA Data Manager M and a meter at the point of interconnection are required to implement a closed-loop control. The controller and the setpoint can then be configured in the SMA Data Manager M.
